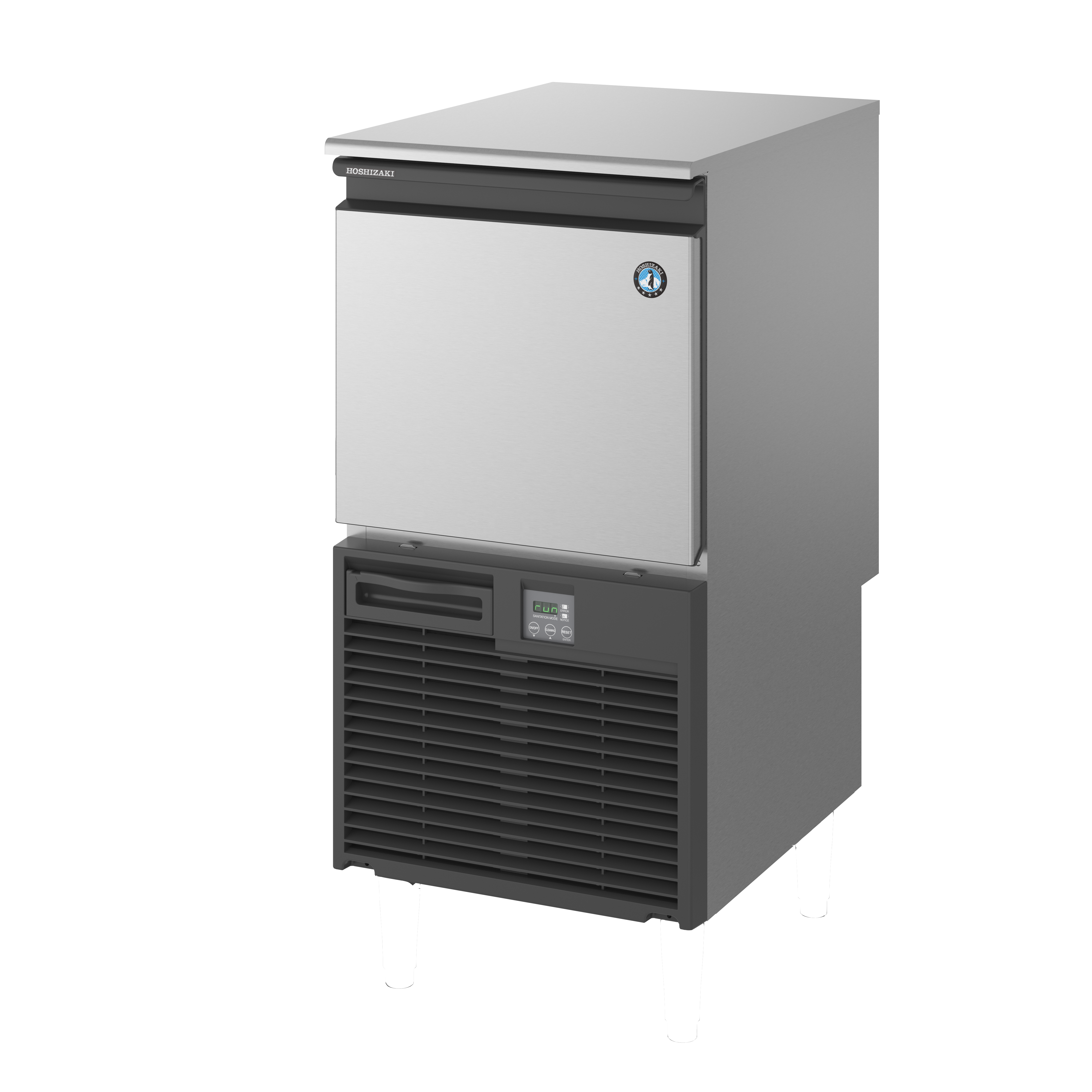

This Hoshizaki KM-40C-HC is a self-contained Crescent Edge ice maker producing up to 41 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.
This Ice Machine produces Cresent Ice.
This Ice Machine does not come with a Drain pump. Gravity Drain
Hoshizaki recommends the use of a compatible water filter to prevent non-warrantable scale & sediment complications
- Brand Name – Hoshizaki
- Dimensions – 452(W) x 610(D) x 838(H)mm
- Manufacturer – Hoshizaki
- Weight – 75 kg
- Individual premium crescent cube with no ice bridging.
- Exceptionally hard crystal clear cubes that melt slowly.
- Durable stainless steel exterior.
- Slide in air filter at front for easy cleaning -maintaining performance efficiency.
- Double-sided stainless steel evaporator for all water conditions -produces more ice in less cycles.
- Flush mount to rear wall.
- Good in hard water areas.
- Snap in water tank design – easy to remove for sanitization.
- Low electrical consumption.
- Low water consumption.
- LED lights and audible alarms.
- 3 year parts and labour warranty on entire unit.
- Production Capacity per 24 Hours
Approx. 41kg @21°C Air temp; 15°C Water
Approx. 33kg @32°C Air temp; 21°C Water
Approx. 16kg(Bin Cont Setting Approx. 14kg)
- Max Storage CapacityApprox. 16kg (Bin Cont Setting Approx. 14kg)
- Freeze Cycle TimeApprox. 25 Min
- Ice Production Per cycleApprox. 0.71kg/80pcs
- Dimensions452mm (W) x 610mm (D) x 842mm (H) (Adjustable legs are optional)
- AC Supply Voltage1 PHASE 220-240V 50Hz/10Amp Plug
- AmperageRunning: 1.7A Starting: 8.5A
- Operating ConditionsAmbient Temp.: 1- 40°C
- Water Supply Pressure0.07-0.8MPa (0.7-8bar)
- Water Supply Temp7-32°C
