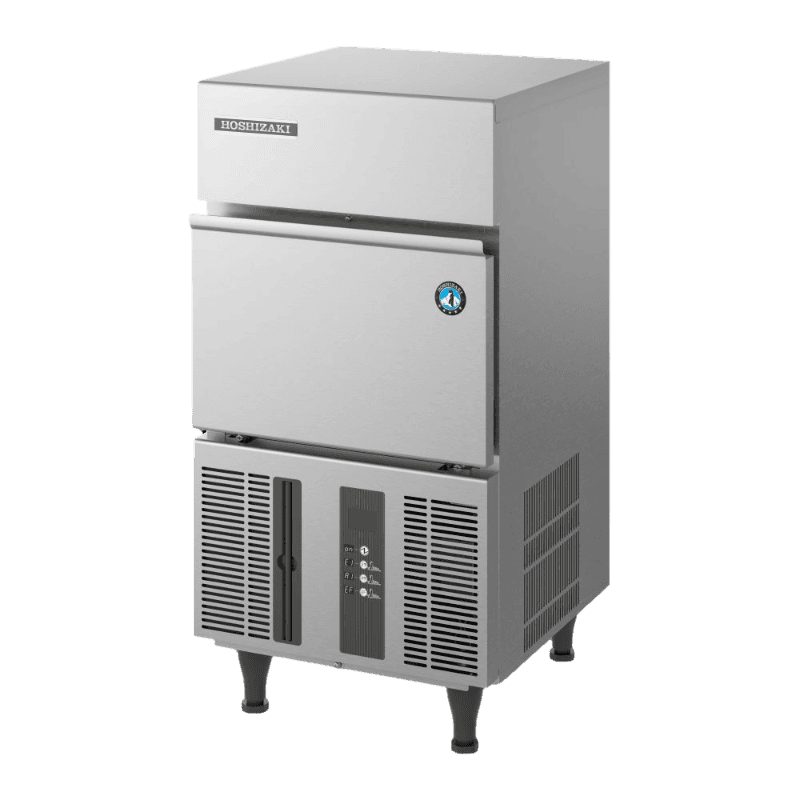

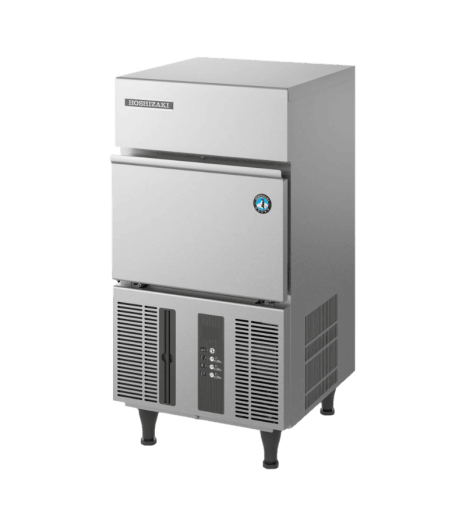

The Hoshizaki IM-30CNE-25 ice machine produces 18kg of clear hard ice a day with reduced power and water consumption.
This Ice Machine produces 25 x 25 x 23mm Ice Cubes
This Ice Machine does not come with a Drain pump. Gravity Drain
Hoshizaki recommends the use of a compatible water filter to prevent non-warrantable scale & sediment complications
- Brand Name – Hoshizaki
- Dimensions – 398(W) x 451(D) x 787(H)mm
- Manufacturer – Hoshizaki
- Weight – 75 kg
- New intelligent control circuit dedicated to saving power and water consumption.
- Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage & high amp protector.
- New 7 segment operational display panel for ease of use.
- Unique closed cell water circuit for ultimate contamination protection.
- Durable stainless steel exterior.
- Easily accessible and cleanable air filters reduce costly callouts.
- Exceptionally hard crystal clear cubes that melt slowly.
- Auto rinse and flush cycle.
- 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
- Production Capacity per 24 Hours
Approx. 18kg @21°C Air temp; 15°C Water
Approx. 15kg @32°C Air temp; 21°C Water
Approx. 23kg(Bin Cont Setting Approx. )
- Max Storage CapacityApprox. 11.5kg (Bin Cont Setting Approx. 14kg)
- Freeze Cycle TimeApprox. 19 Min
- Ice Production Per cycleApprox. 0.27kg / 21pcs
- Dimensions398mm (W) x 451mm (D) x 787mm (H) (Adjustable legs are optional)
- AC Supply Voltage1 PHASE 220-240V 50Hz/10Amp Plug
- AmperageRunning: 1.7A Starting: 8.5A
- Operating ConditionsAmbient Temp.: 1- 40°C
- Water Supply Pressure0.07-0.8MPa (0.7-8bar)
- Water Supply Temp7-32°C
